定位爪
2024-06-18 來自: 華海電器 瀏覽次數:

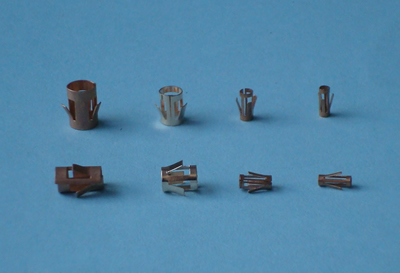

定位爪（外二爪）
|
序號 |
名稱 |
A |
B |
H |
|
1 |
8# |
Φ5.4mm |
Φ4.5mm |
5.5mm |
|
2 |
10# |
Φ4.2mm |
Φ3.1mm |
6.9mm |
|
3 |
12# |
Φ3.5mm |
Φ2.8mm |
4.4mm(尾1*0.6) |

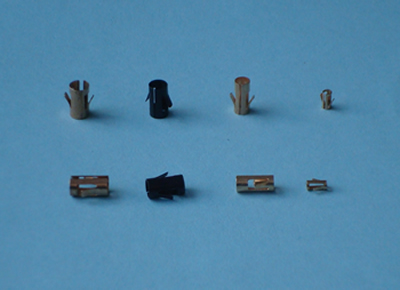

定位爪（外二爪）
|
序號 |
名稱 |
A |
B |
H |
|
1 |
8#(A) |
Φ5.7mm |
Φ7.9mm |
7.0mm |
|
2 |
8#(B) |
Φ4.7mm |
Φ6.9mm |
7.0mm |
|
3 |
8#(C) |
Φ2.9mm |
Φ4.16mm |
6.0mm |
|
4 |
12# |
Φ4.0mm |
Φ5.3mm |
5.9mm |
|
5 |
16# |
Φ2.6mm |
Φ3.8mm |
4.9mm |
|
6 |
20# |
Φ1.2mm |
Φ2.1mm |
5.0mm |
|
7 |
22# |
Φ1.1mm |
Φ1.9mm |
3.4mm |
定位爪（內三爪）
|
序號 |
名稱 |
A |
B |
H |
|
1 |
8# |
Φ6.5mm |
Φ8.9mm |
8.0mm |
|
2 |
10# |
Φ4.4mm |
Φ6.6mm |
6.0mm |
|
3 |
10# |
Φ5.6mm |
Φ6.5mm |
3.4mm |
|
4 |
12# |
Φ4.0mm |
Φ6.0mm |
6.0mm |
|
5 |
12# |
Φ3.5mm |
Φ5.3mm |
3.4mm |
|
6 |
16# |
Φ2.5mm |
Φ3.83mm |
3.4mm |
|
7 |
20# |
Φ1.7mm |
Φ3.1mm |
5.0mm |
|
8 |
20# |
Φ2.0mm |
Φ3.2mm |
5.0mm |
|
9 |
20# |
Φ1.8mm |
Φ2.7mm |
3.4mm |
|
10 |
Φ1# |
Φ1.5mm |
Φ3.1mm |
6.0mm |
|
11 |
Φ1.5# |
Φ2.2mm |
Φ3.9mm |
6.0mm |
|
12 |
Φ2# |
Φ2.9mm |
Φ4.8mm |
6.0mm |
|
13 |
Φ3# |
Φ3.9mm |
Φ5.7mm |
6.0mm |
|
14 |
Φ6# |
Φ6.9mm |
Φ8.4mm |
3.4mm |
